ELHO Scorpio 550 Rock Picker

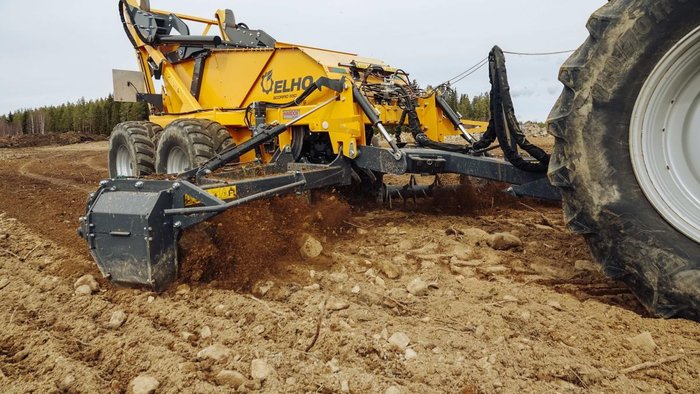

The ELHO Scorpio 550 collects stones efficiently!
Picking stones is tough work. Whether you are a farmer of contractor, stone picking has to be timed in between other tasks – usually before ploughing or after harvesting.

The ELHO Scorpio 550 stone picker is equipped with unique solutions that make it easy to remove stones from fields.

One of the key features of the Scorpio 550 is fully hydraulic drive. The hydraulic flow is 85 litres/minute, which is achieved with 110-150 bar. The hydraulic drive is designed for use with a tractor’s normal dual-function hydraulic coupling and a nominal pump size of 110 l/min. The maximum continuous use is 24 kW, and the tractor’s own cooler keeps the oil temperature optimal.

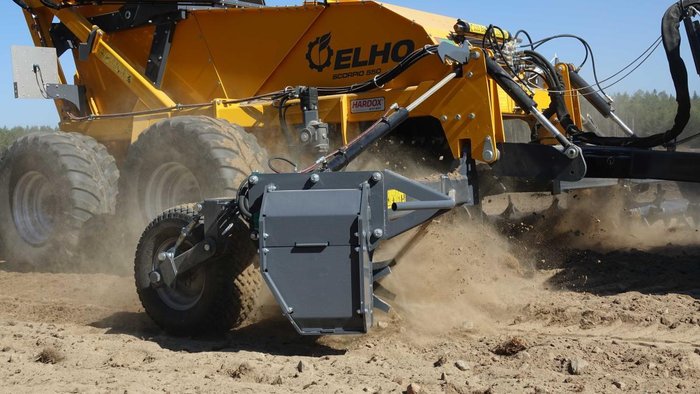

Automatic depth adjustment enables the machine to follow the surface of the ground with a constant working pressure. This makes it easy and pleasant to operate the machine, even in extremely dusty conditions.

The hydraulic system can temporarily increase pressure to the second pickup motor when needed, and the lifting force at the end of the tines is 700 kg.

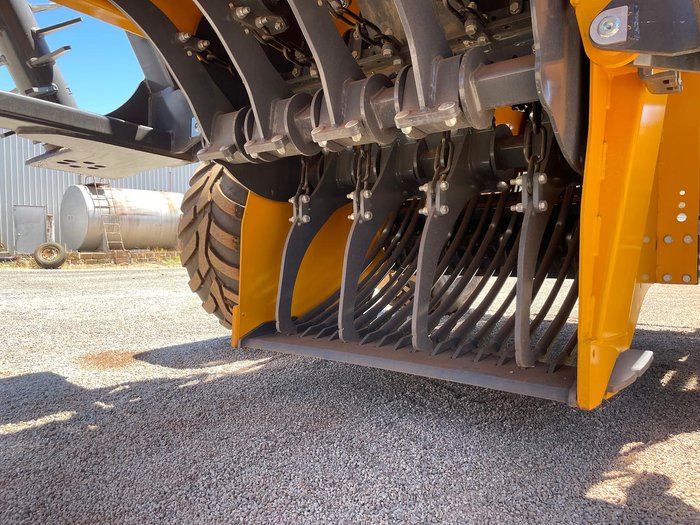

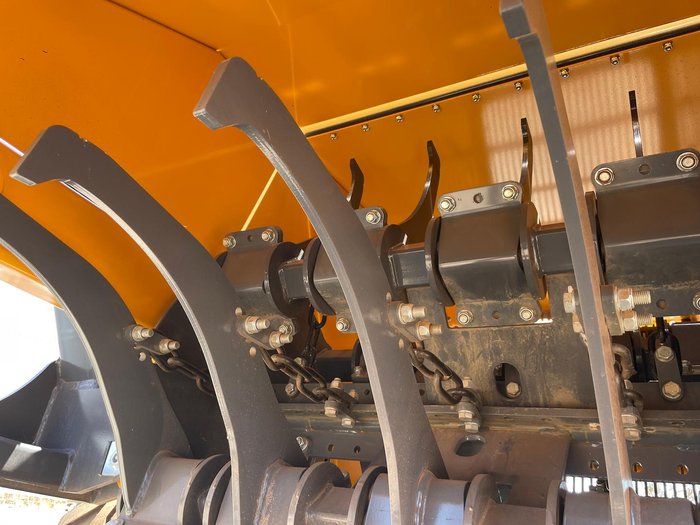

Sturdy Hardox 500 tines can rotate at higher speeds than traditional steel spring tines. The higher rotation speed improves sieving and soil removal, and it also breaks up organic materials better. The diameter of the picker is 1.8 metres and rotates at 80 r/min, while the tines rotate at 125 r/min.

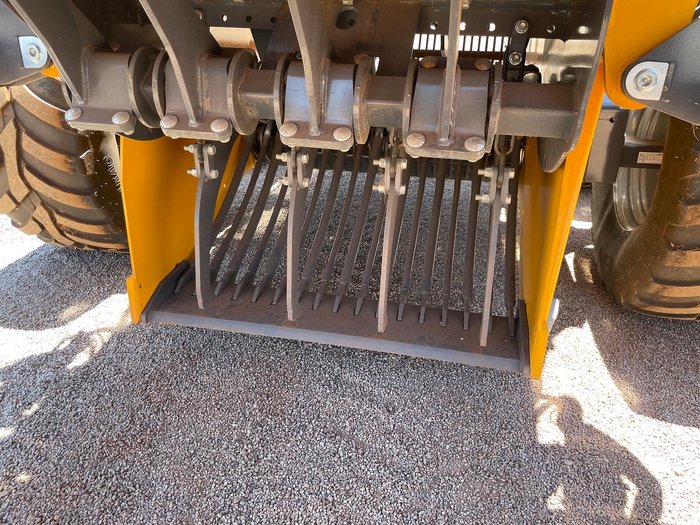

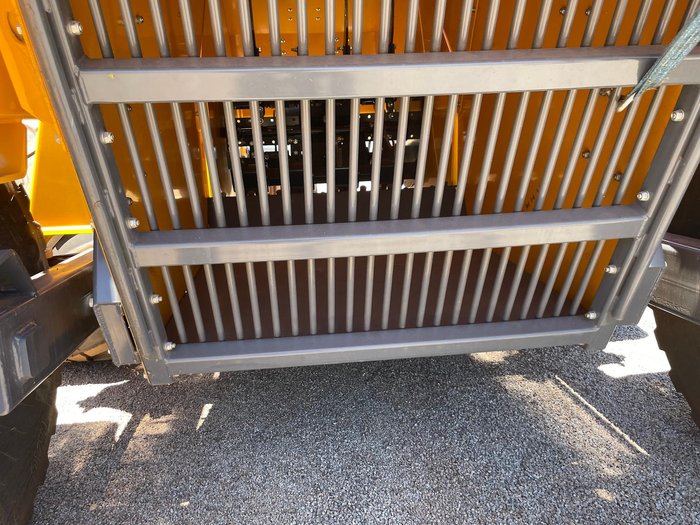

The Hardox 500 tines have rubber bushings, allowing the sieve steel bars to flex laterally. All of the tines flex backwards and lift out of the sieve to prevent blockages. The maximum tine flex is 500 mm.

Key Specification:
Tractor power requirements, min/max, kW* 75-140
Minimum recommended tractor hydraulic pump size, l/min 110
Hydraulic flow max, l/min 85
Hydraulic coupling, single action 1
Hydraulic coupling, double action 3
Working width, m 5,5
Stone size, mm 25-400
Side conveyor height, m N/A
Hopper capacity, m³ 1,5-2
Tipping height, m 2,7
Working depth, cm 0-7
Driving speed, km/h 1-7
Pick-up lifting tines, pcs 16
Pick-up tine lifting force, kg 400
Pick-up tine flex up from screen, mm 210
Screen size, mm 30/40/100/110

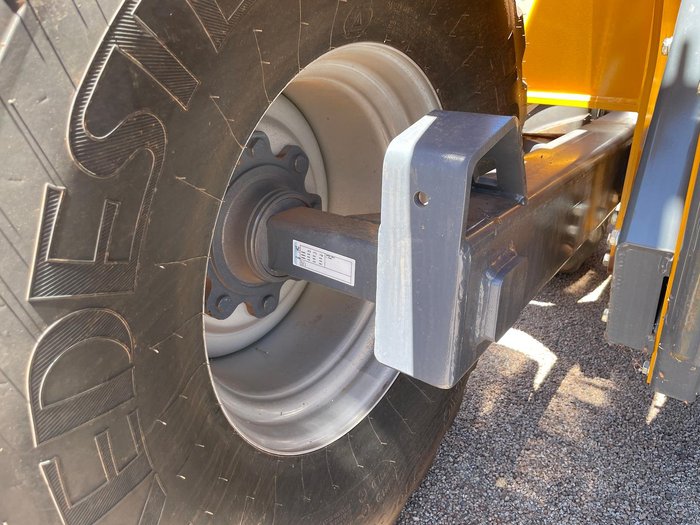

Tyre size 560/60-22,5
Rake wheels 26×12.00-12
Weight, kg** 6800
Length, m 7,2
Width, m 3
Height, m 3,3
