Nufab Deep Ripper 2 4 Row 8 20 Tyne 4.9 12Mtr widths

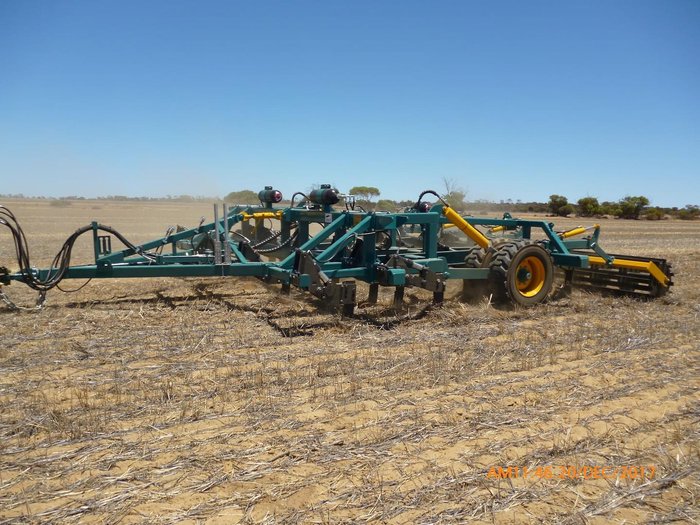

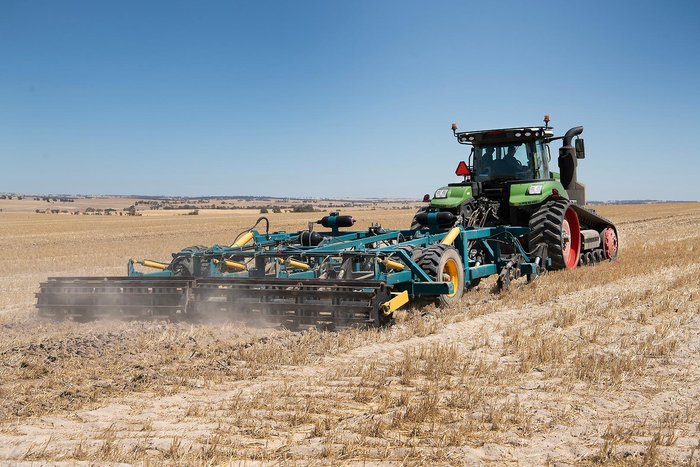

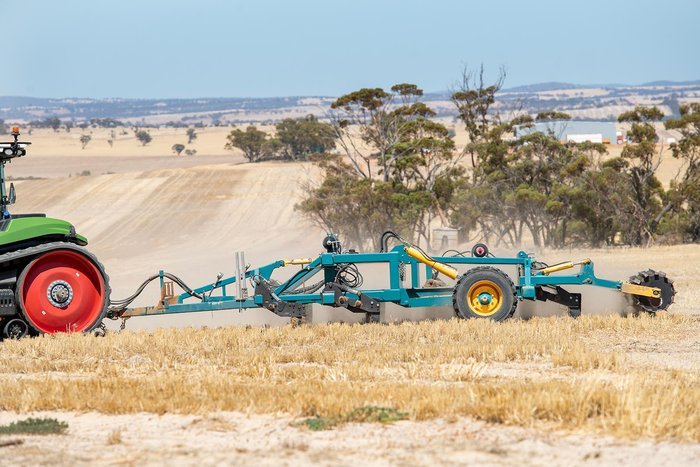

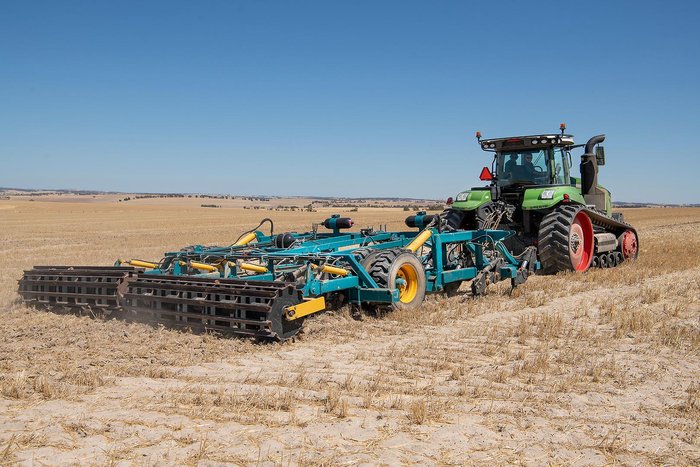

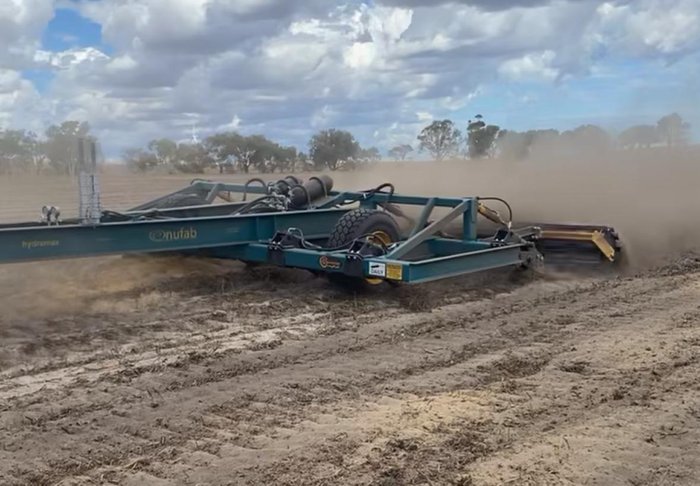

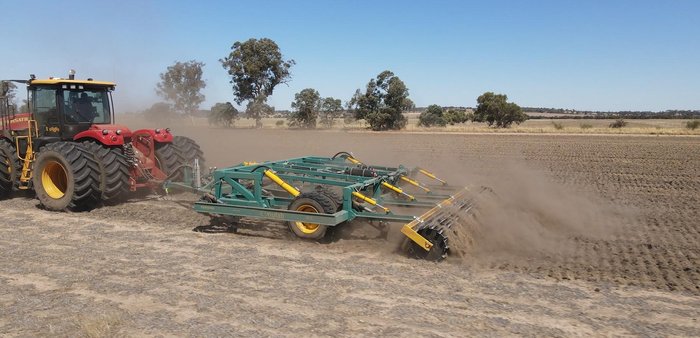

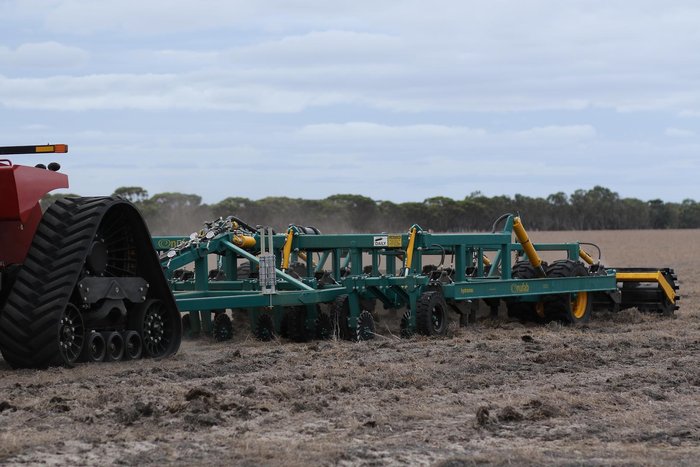

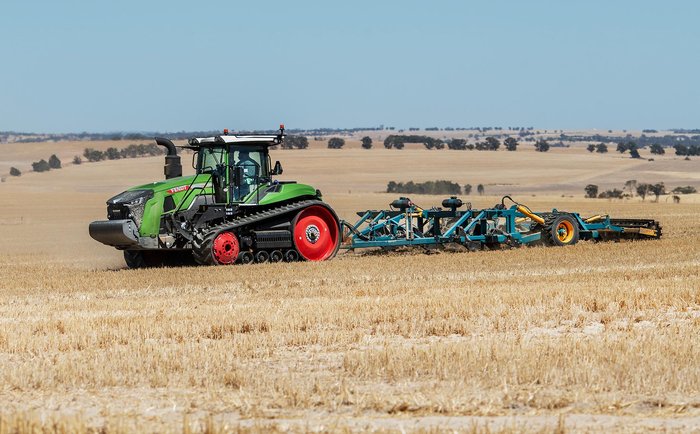

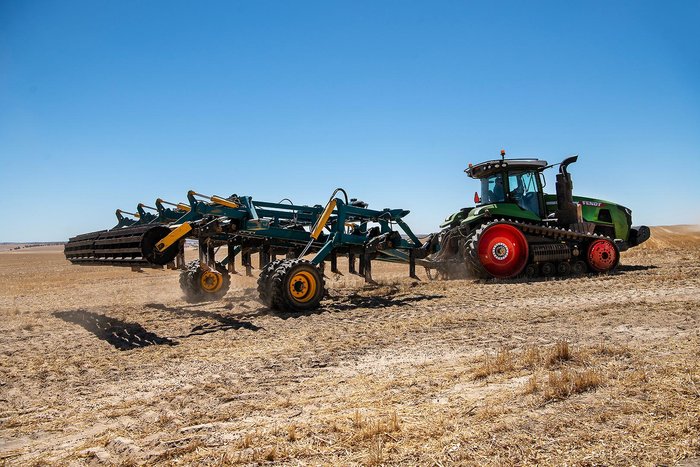

Nufab's range of Deep Rippers from 2-4 Rows, 8-20 Tyne's. 4.9 - 12 mtr width available (shown with optional crumble roller)
The Ultra Deep Ripper features unmatched hydraulic breakaway, ripping up to 800mm for superior soil management.

Features
Double pivot jump system, proven for over 20 years.
340mm first stage jump for quick re-entry over small obstacles with 730mm second stage jump for navigating large obstructions.
Ability to "Ultra Deep Rip".
Option of shallow leading Tyne's significantly reducing draft and facilitating better delving results.

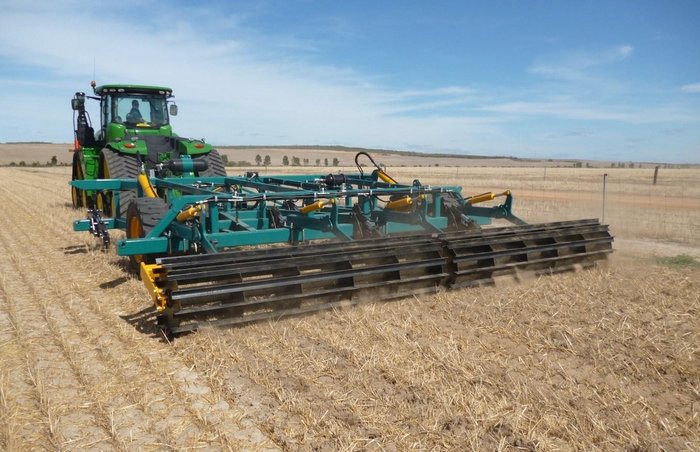

Option of crumble roller with "Hydraulic Downward Pressure" for an excellent seed bed finish.
Hydraulic break out (adjustable) with working depth up to 800mm.
Multifunctional main frame (178mm X 178mm X9.5mm RHS) allowing shank spacing’s from 462 to 600mm on a versatile range of frame designs all utilising a strong ‘I’ beam style construction for flexibility.
Frame options include wing fold, outside "I" beams, crumble rollers, tow bar, level lift.
Widths up to 12m/40’.
Machines have achieved in excess of 40,000hours of operation.
Shank systems allows a range of options from inclusion plates to a specifically designed delving Tyne.
